120W Flexible Solar Panel: Lightweight, Durable, and High-Efficiency Solution for Portable and Off-Grid Power Needs

120W Flexible Solar Panel: Lightweight, Durable, and High-Efficiency Solution for Portable and Off-Grid Power Needs

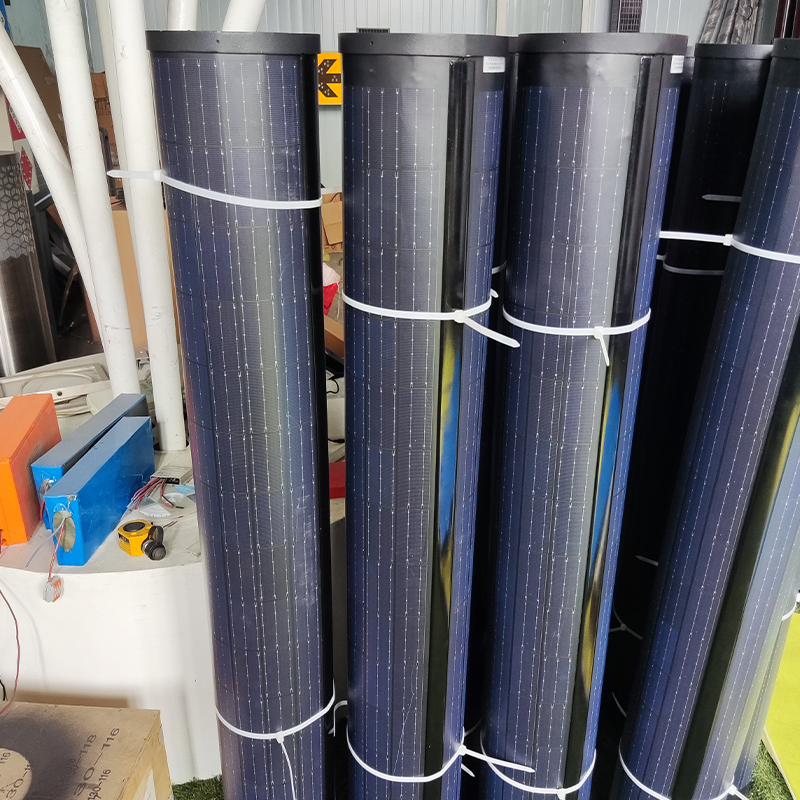

The 120W Flexible Solar Panel is an advanced solution designed for projects that value efficiency, elegant appearance, and advanced technology. Its lightweight and flexible design makes it ideal for a variety of applications such as street lighting, park lighting, landscape lighting, etc. It adoptsan advanced flexible solar panel design, which improves the integration of solar panels with lamps and poles.

REQUEST QUOTE

PREV: 140W Flexible Solar Panel: High-Performance, Elegant and Versatile Power Solution for Lighting Poles and Park Lightings NEXT: No next article

Parameters

Model No.	DDK-Flex-SHJ- 120	DDK-Flex-SHJ- 141	DDK-Flex-SHJ- 161	DDK-Flex-SHJ- 201
Solar Cell Type	Super-wire Heterojunction Solar Cell with Super-wire Flexible Connection Technology Cell efficiency ≥24%

Applicable for Pole Diameter(mm)	180mm 200mm	210mm 220mm 230mm	250mm	300mm 315mm


Inner Circuit in parallel	6 Circuits in Parallel	7 Circuits in Parallel	8 Circuits in Parallel	10 Circuits in Parallel

Pmax(W)	120	141	161	201
Vmp(V)	17.7	17.7	17.7	17.7
Imp(A)	6.81	7.95	9.09	11.36
Voc(V)	22.14	22.14	22.14	22.14
Isc(A)	7.35	8.57	9.8	12.25
Pane	1330×571/633×1.5mm	1330×664/697/729×1.5mm	1330×792×1.5mm	1330×949x1.5mm

Panel Weight	1.2 Kg/1.3Kg	1.4-1.6Kg	1.7Kg	2.0Kg
Working Temperature	-40℃~85C
Power Temp Co-efficient(%/℃)	-0.27
Current Co-efficient(%/℃)	0.04

Voltage Co-efficient(%/°C)	-0.26

Note	No solar cable;+/-soldering points are at the panel's backside.
