DDK-ODSL0022

PREV: DDK-RD-F01 Butterfly Garden Lamp Head NEXT: DDK-ODSL0023

Parameters

Product Name	DDK-ODSL0022
Power	85W
Supply voltage range	100-305VAC
Temperature range	-25℃/+55℃
Light source	LUXEON 3030-2D//CREE-XTE
Luminous intensity class	Symmetrical:G2/Asymmetrical:G1
Glare index class	D6
Colour temperature	3000K,4500K,6000K
Colour Rendering Index	>80RA
System efficacy	117lm/w
LED Lifetime	MIN 100,000hours at 25℃
Power Efficiency	0.89
Current Adjustment Range	1.33-2.66A
Voltage adjustment Range	32.4-39.6V
Lightning protection	Ground 10KV/Ungrounded 10KV
Service life	MIN 50.000 hours
Housing material	Die-cast aluminum
Sealing material	Silicone rubber
Cover material	Tempered glass
Housing colour	Light Grey.Dark Grey.Black(or specified color)
Wind resistance	0.065m²
Protection class	IP66
Safety class	Class IⅡ
Shock protection	IK 09
Corrosion resistance	C5
Mounting diameter option	Φ60mm
Suggested mounting height	3-8m

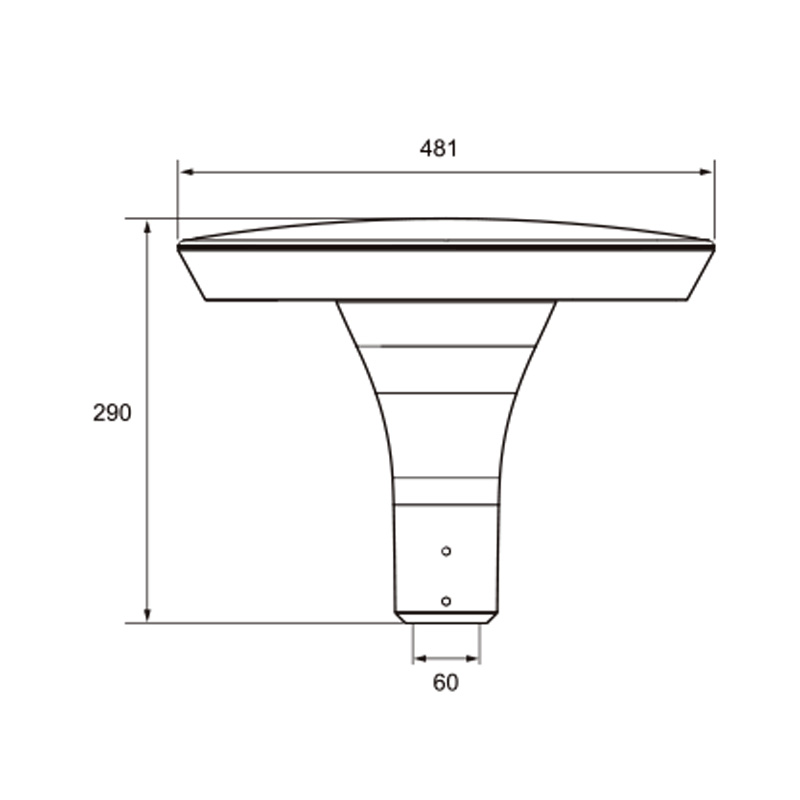

Dimension(LWH)	Φ482*618mm
Net weight	10kgs

LED chips：3030

Order code	poer(W)	Temperature color	Luminous Flux of the luminaire(Im) -4000k(T=85℃)	CRI	Input voltage


5301	50	3000-6500K	5950	>80	100-305Vac
5302	90	3000-6500K	11340	>80	100-305Vac
