DDK-ODSL0024

Parameters

Product Name	DDK-ODSL0024
Power	100W/120W/150W
Supply voltage range	100-305VAC
Temperature range	-25℃/+55℃
Light guiding system	PC lenses
Light source	LUXEON 3030-2D//CREE-XTE
Luminous intensity class	Symmetrical:G2/Asymmetrical:G1
Glare index class	D6
Colour temperature	3000K,4500K,6000K
Colour Rendering Index	CRI>80
System efficacy	Luxeon:113lm/w Gree-XTE:119.8lm/w GREE XP-G3:121lm/w
LED Lifetime	MIN 60.000hours
Power Efficiency	0.92
Current Adjustment Range	100W 1.33-2.66A/150W 2.1-4.17A
Lightning protection	Ground 10KV/Ungrounded 10KV
Housing material	Die-cast aluminum
Sealing material	Silicone rubber
Cover material	Tempered glass
Housing color	Light Grey.Dark Grey.Black(or specified color)
Wind resistance	0.144m²
Protection class	IP66
Safety class	Class ll
Shock protection	IK10
Corrosion resistance	C5
Mounting diameter option	Φ60mm
Suggested mounting height	5-12m

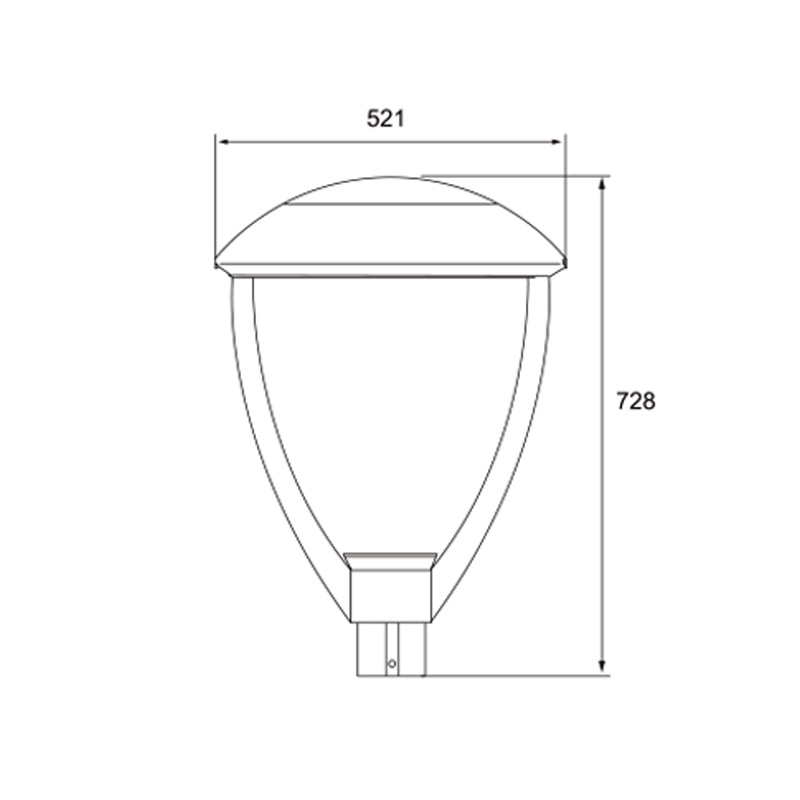

Dimension(LWH)	Φ521mm, L*H:728mm
Net weight	10kgs

LED chips：3030

Order code	No.LED	Current	Connected load (W)	Temperature color	Luminous Flux of the luminaire(lm) -4000k(T=85℃)	CRI


5501	108	350ma	38	3000-6500K	5400	>80
		700ma	75	3000-6500K	9450	>80
		800ma	90	3000-6500K	10170	>80
5502	144	350ma	50	3000-6500K	7200	>80
		700ma	100	3000-6500K	12600	>80
		800ma	120	3000-6500K	13560	>80
5503	192	350ma	67	3000-6500K	9600	>80
		700ma	133	3000-6500K	16800	>80
		800ma	160	3000-6500K	18080	>80
