DDK-ODSL0031

Parameters

Product Name	DDK-ODSL0031
Power	30-60W
Supply voltage range	100-305VAC
Temperature range	-25℃/+55℃
Light guiding system	PC lenses
Light source	LUXEON 3030
Luminous intensity class	Symmetrical: G2
Glare index class	D6
Colour temperature	2700K-6500K
Color Rendering Index	CRI>80
System efficacy	120lm/w
LED Lifetime	MIN 50,000 hours
Power Efficiency	0.92
Current Adjustment Range	300mA-700mA
Lightning protection	Ground 6KV/Ungrounded 4KV (additional SPD 10KV/20KV)
Housing material	Die-cast aluminum
Sealing material	Silicone rubber
Cover material	Tempered glass
Housing colour	Light Grey, Dark Grey, Black(or specified color)
Wind resistance	0.113m²
Protection class	IP66
Safety class	Class Il
Shock protection	IK9
Corrosion resistance	C5
Mounting diameter option	Φ76mm
Suggested mounting height	3-4m

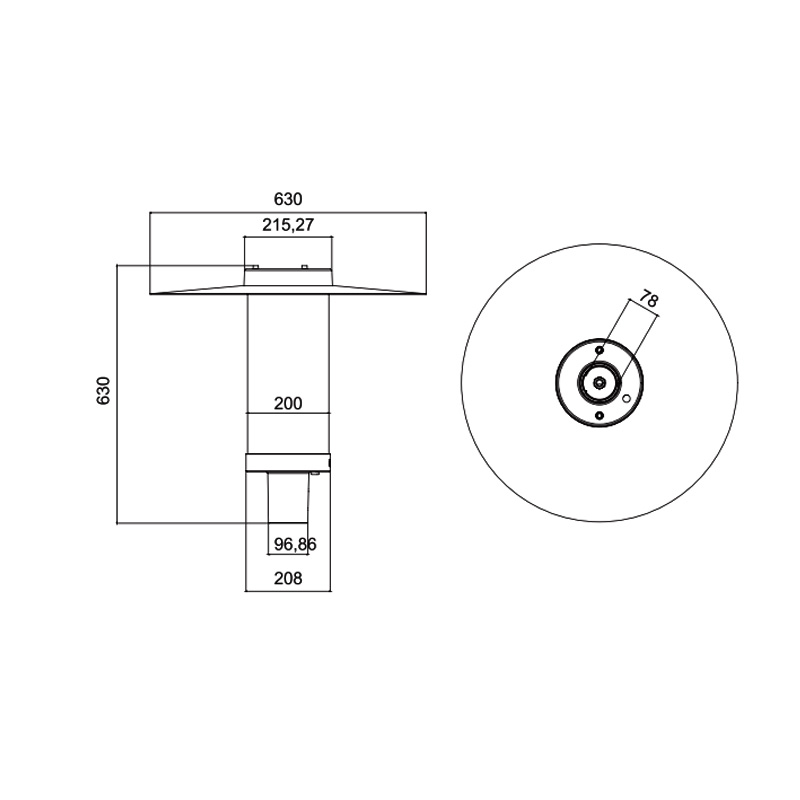

Dimension (LxW×H)	680680600 mm
Net weight	6.2kgs

LED chips：3535

Order code	poer(W)	Temperature color	"Luminous flux of the luminaire(Im) -4000k(Tj=85℃)"	CRI	Input voltage	IK	IP
Order code	poer(W)	Temperature color	"Luminous flux of the luminaire(Im) -4000k(Tj=85℃)"	CRI	Input voltage	IK	IP
2901	30	3000-6500K	4080	>80	100-305Vac	IK09	IP66
2902	40	3000-6500K	5240	>80	100-305Vac	IK09	IP66
2903	50	3000-6500K	6250	>80	100-305Vac	IK09	IP66
2904	60	3000-6500K	7140	>80	100-305Vac	IK09	IP66
