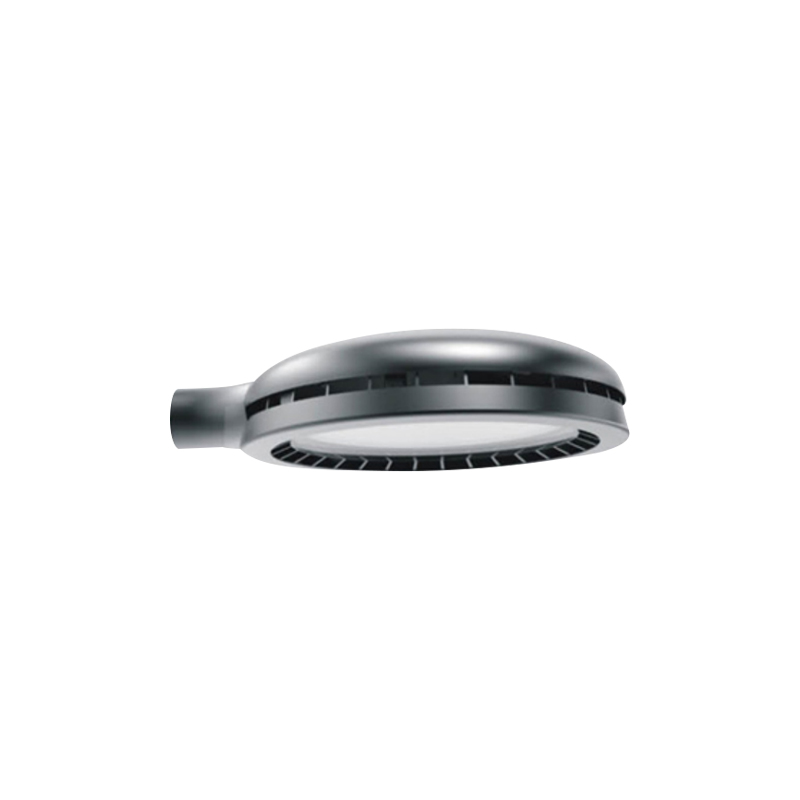

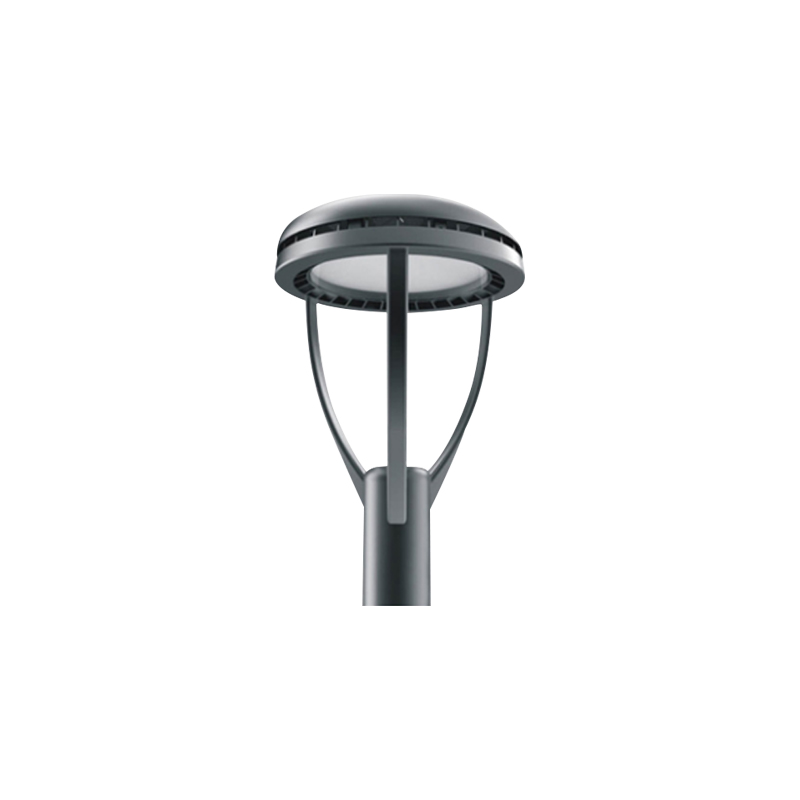

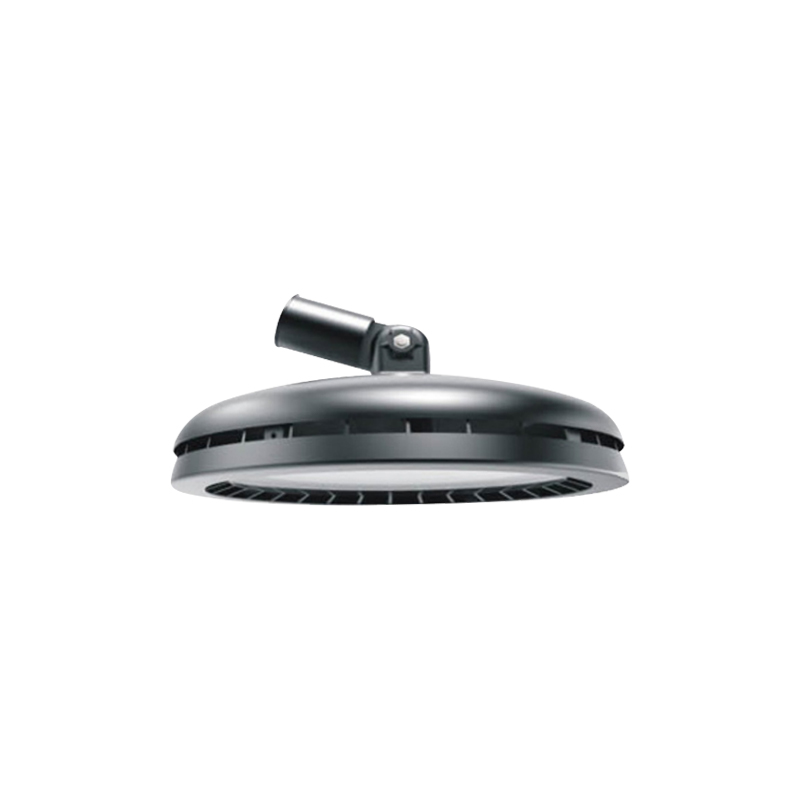

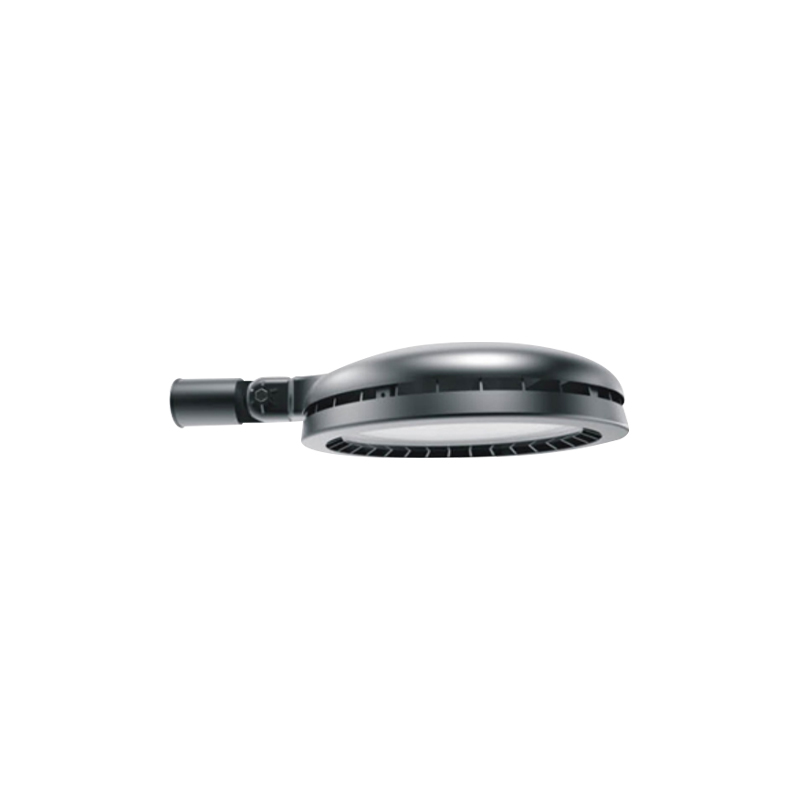

DY2107 Garden Lights Outdoor Landscape Lamps with Three Supports

The DY2107 series offers an exceptional street lighting solution, ideal for urban areas with significant architectural value. Featuring a smart and adaptable 4-in-1 installation design, it supports post-top mounting, bracket side-entry mounting, and suspended mounting options.

Built with premium electrical components, it ensures a long service life, while the tool-free design and power-off switch facilitate safe, easy, and cost-effective maintenance. Its efficient system minimizes energy consumption, enhancing the urban living environment and providing good visual comfort for both public and residential spaces.

With its patented housing design and diverse optical options, the DY2107 series luminaire is also well-suited for project-specific applications.

REQUEST QUOTE

PREV: DDK-ODSL0034 NEXT: No next article

Parameters

Model	DY2107/A/B/C
Light source	Integral LED Module
Power	30W 60W 90W 120W (Other power upon request)

Luminaire fux	2600-1 60001m
Luminaire efficacy	110-1401m/W
CCT	4000K (3000K/5000K/5700K upon request)

CRI	> 70 > 80(upon request)

Lifetime	100,000 hours at 25°C ambient temperature

Operating temperature range	-30 to 45°C
Driver	Meanwell (Inventronics optional) Another brand of a driver(upon request)

Electrical	Class \| or Class II Input voltage: 90-305VAC/50- 60Hz,170-305VAC/50-60Hz 10KV/20KV SPD Power automatically switches off when opening




Dimming	Dali 1-1 0V PWM AstroDIM for autonomous dimming with five independent levels Smart control management system




Options	Photocell Surge protection device (up to 20KV) 0.5m External cable(Other length upon request) Smart control device Motion detection




Materials	Housing: ADC12 die-cast aluminum Cover: Toughened cambered/flat glass Screws: 304 stainless screws


Color	Grey/ Black/ white
Tightness level	IP66
Impact Resistance	IK08
Installation	Recommended mounting height: 3-12M
Standards & Certifications	CE ENEC CB GS IEC ROHS LM80 LM79 TM21 All measurements in TUV sud Laboratory
