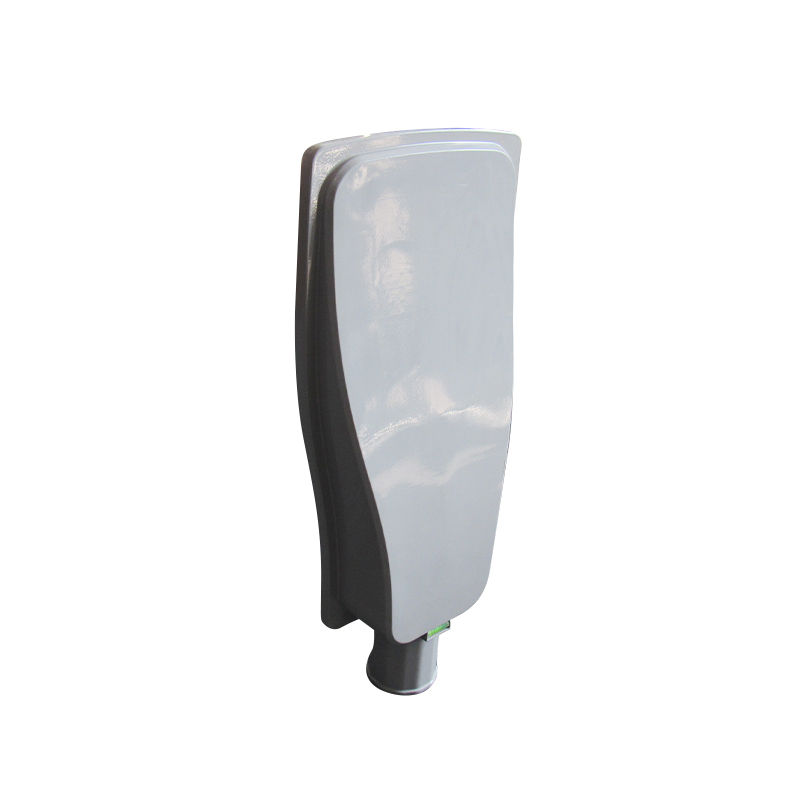

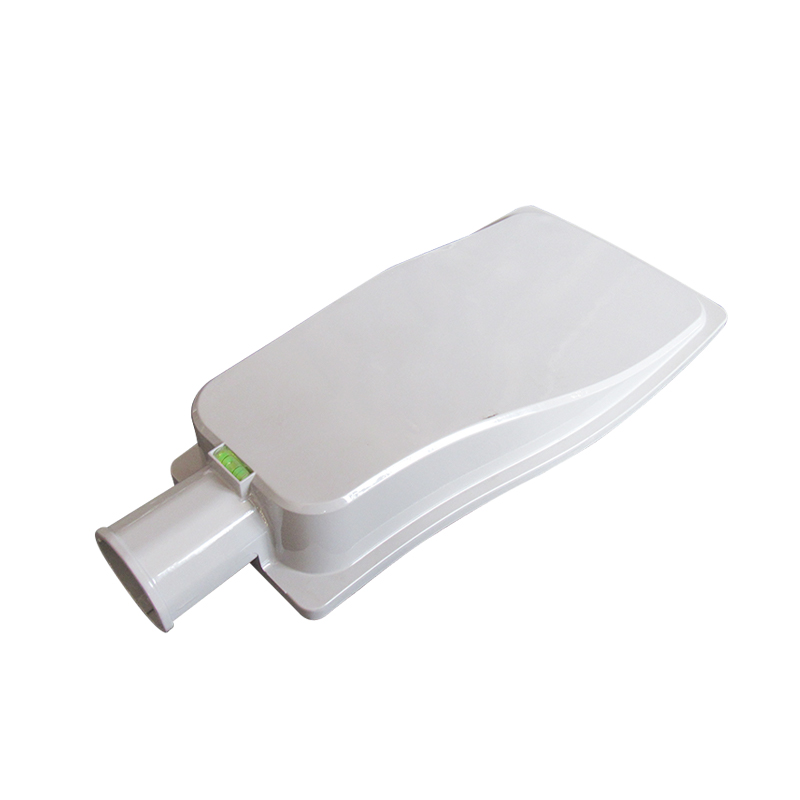

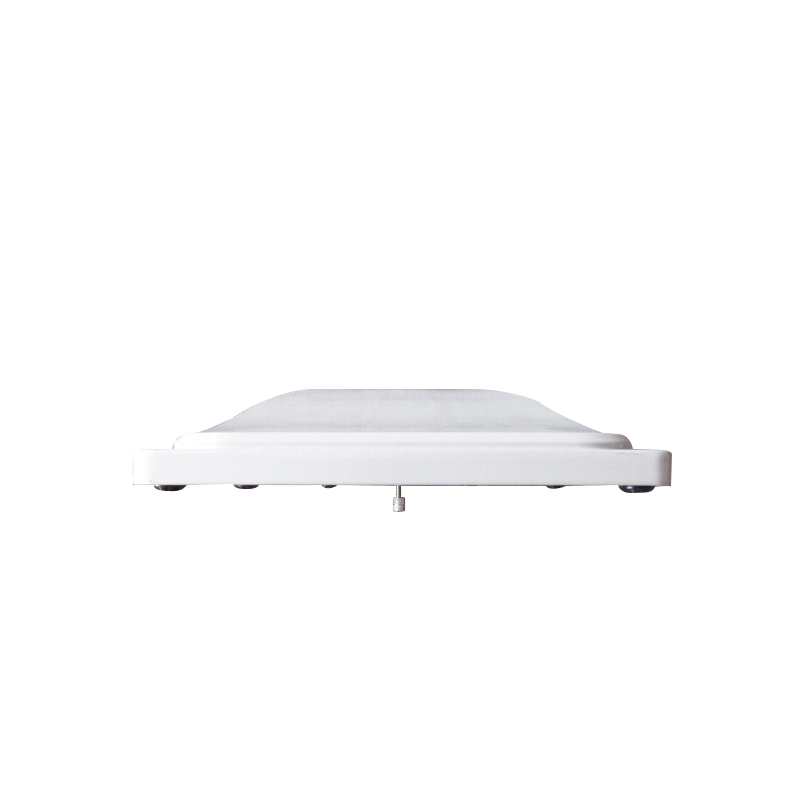

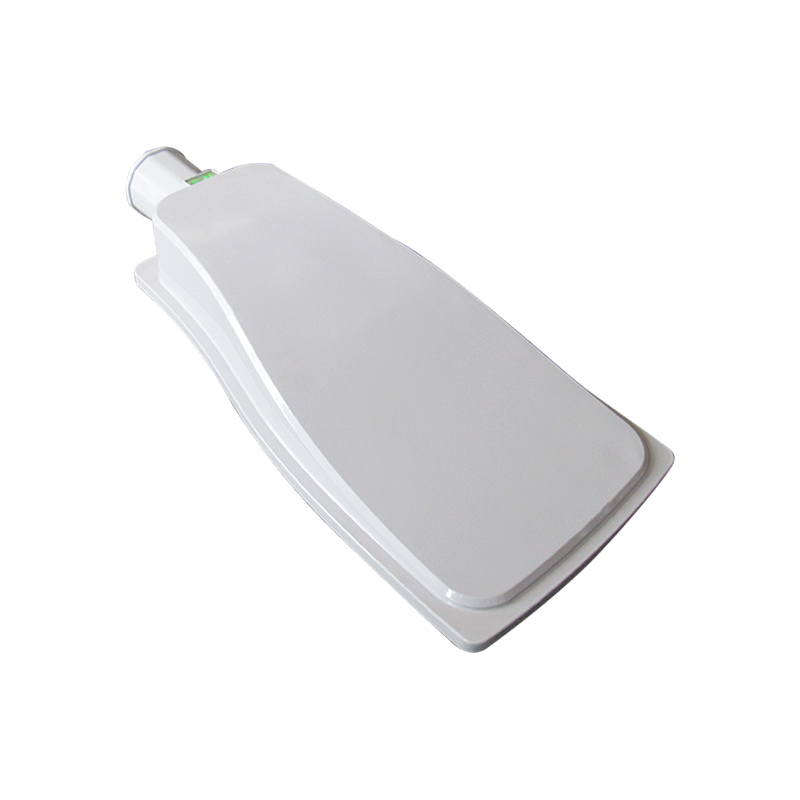

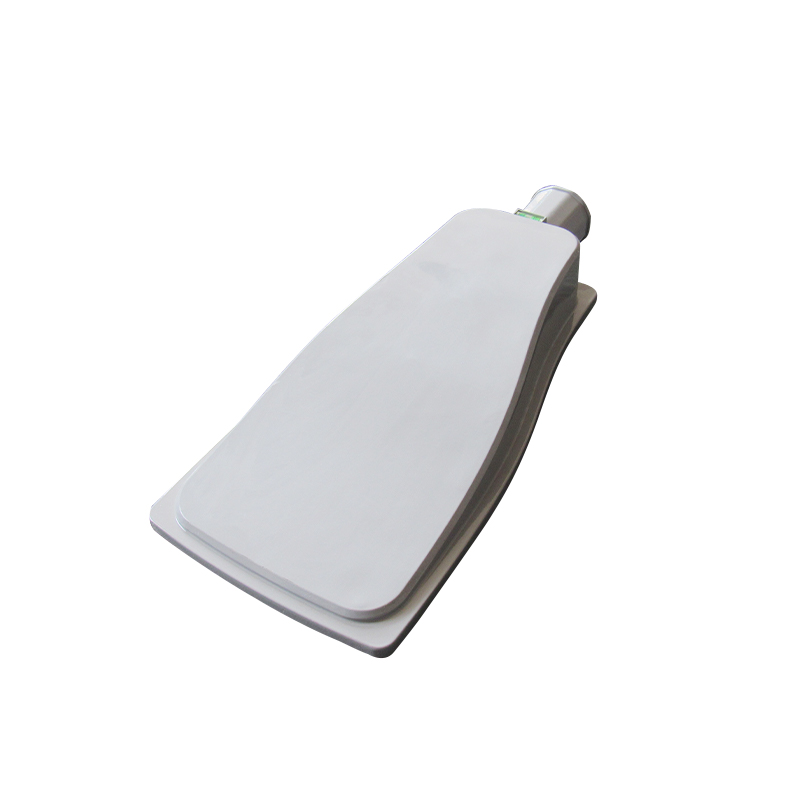

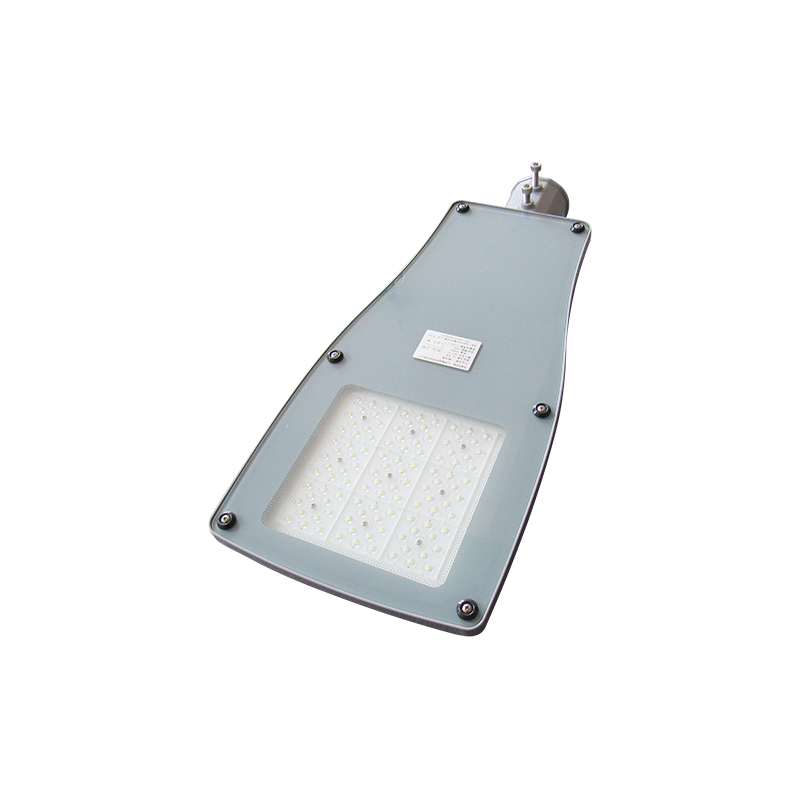

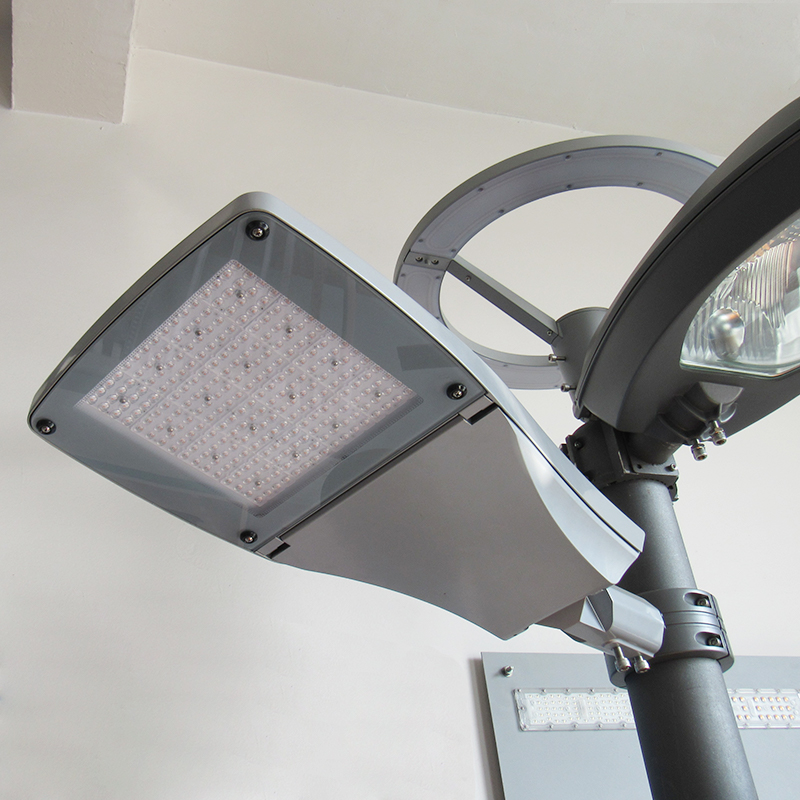

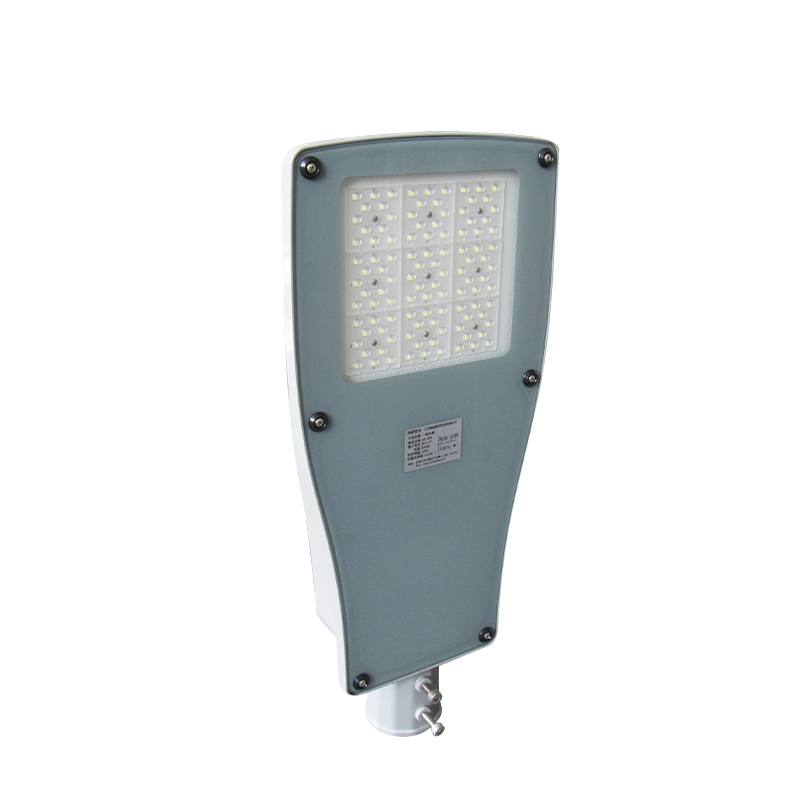

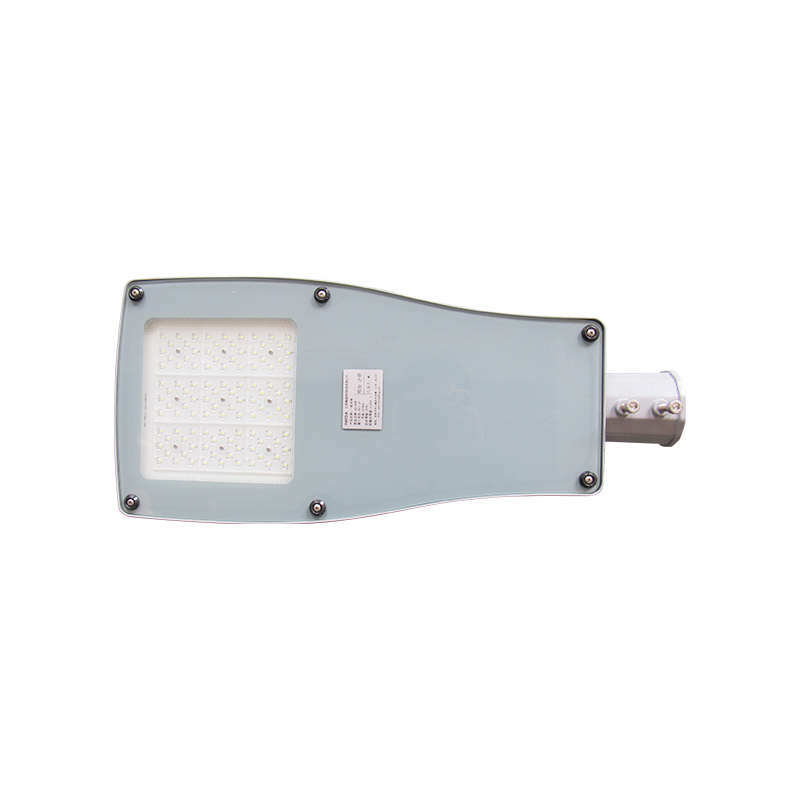

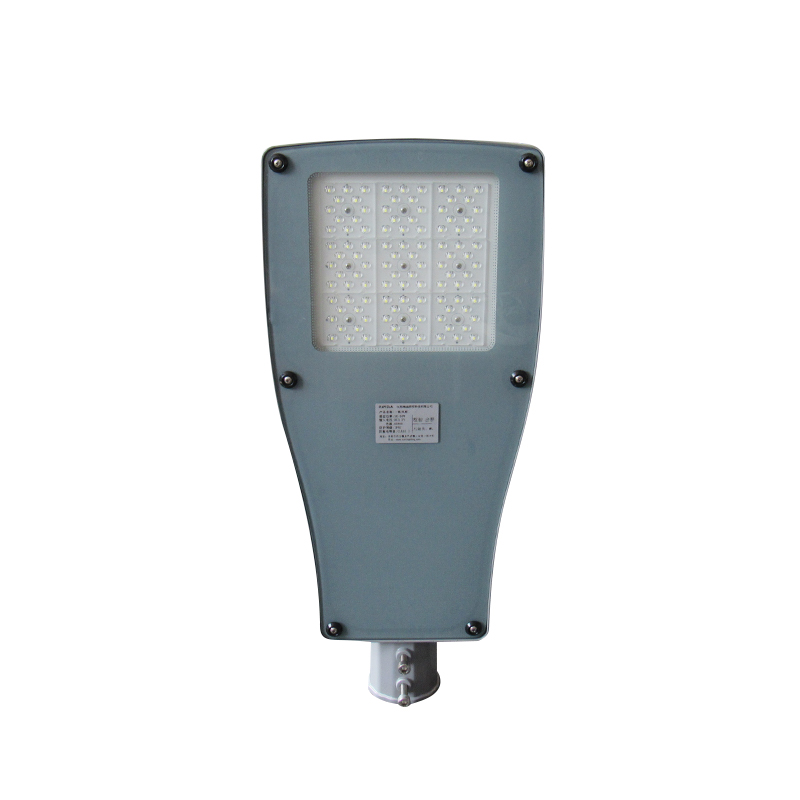

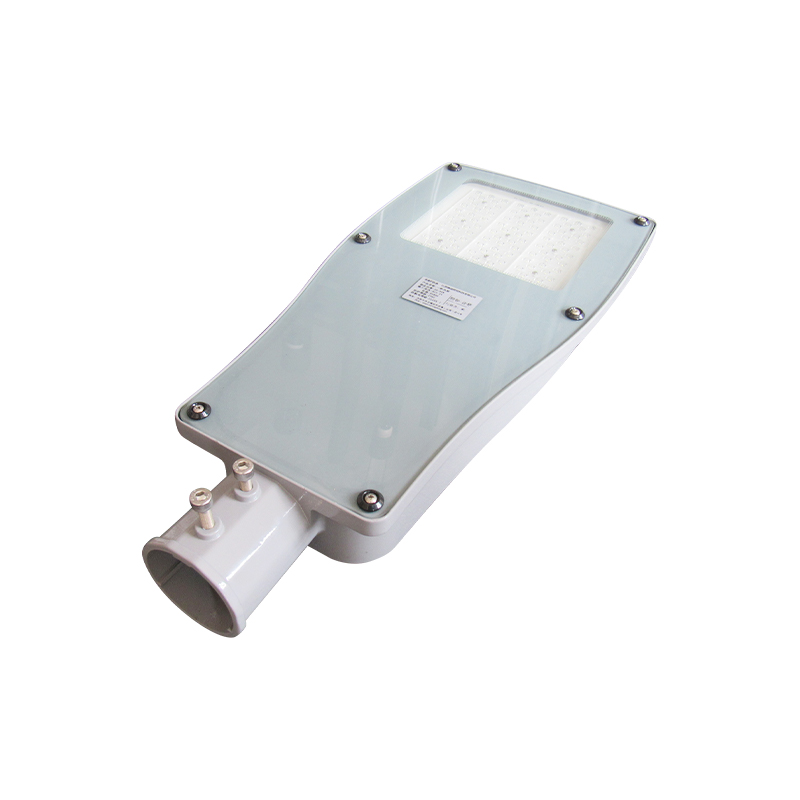

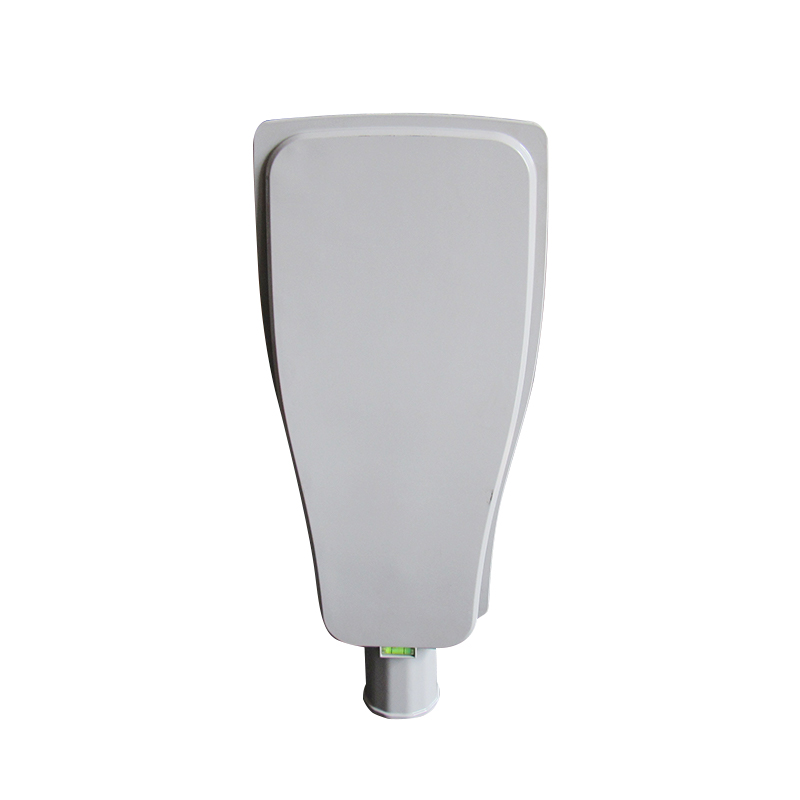

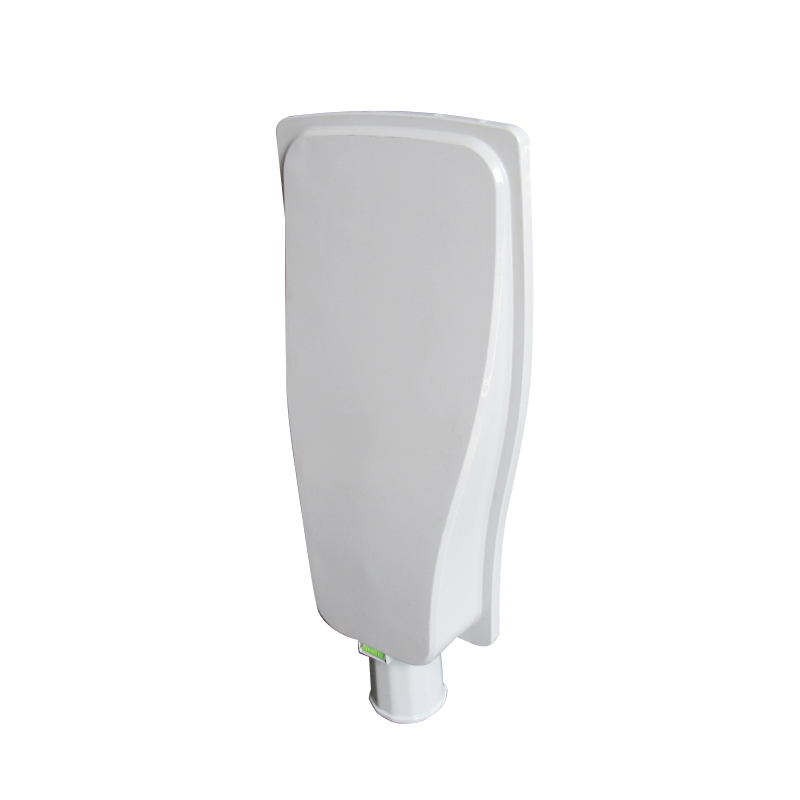

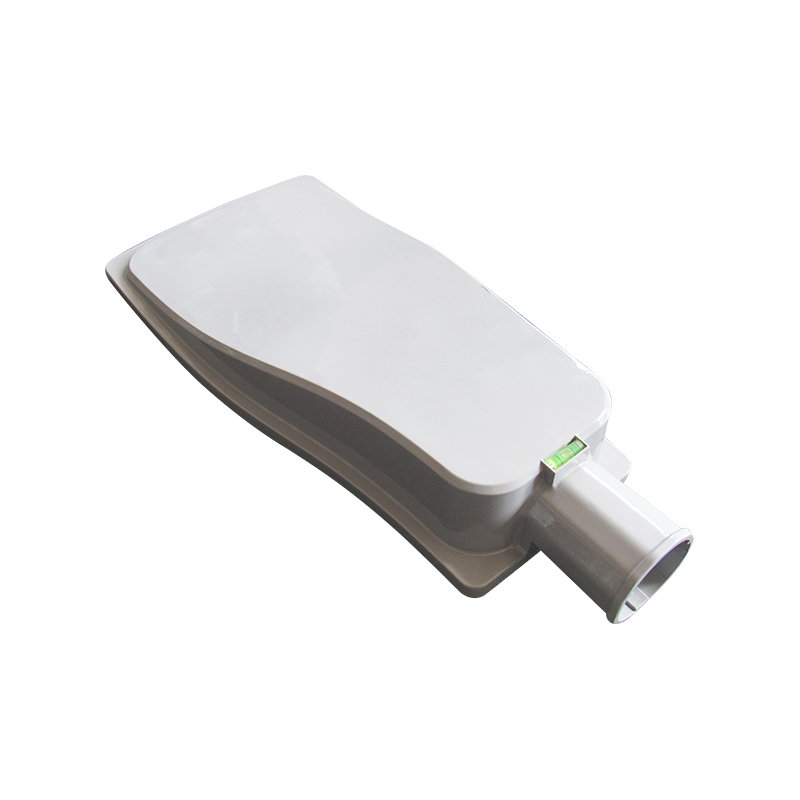

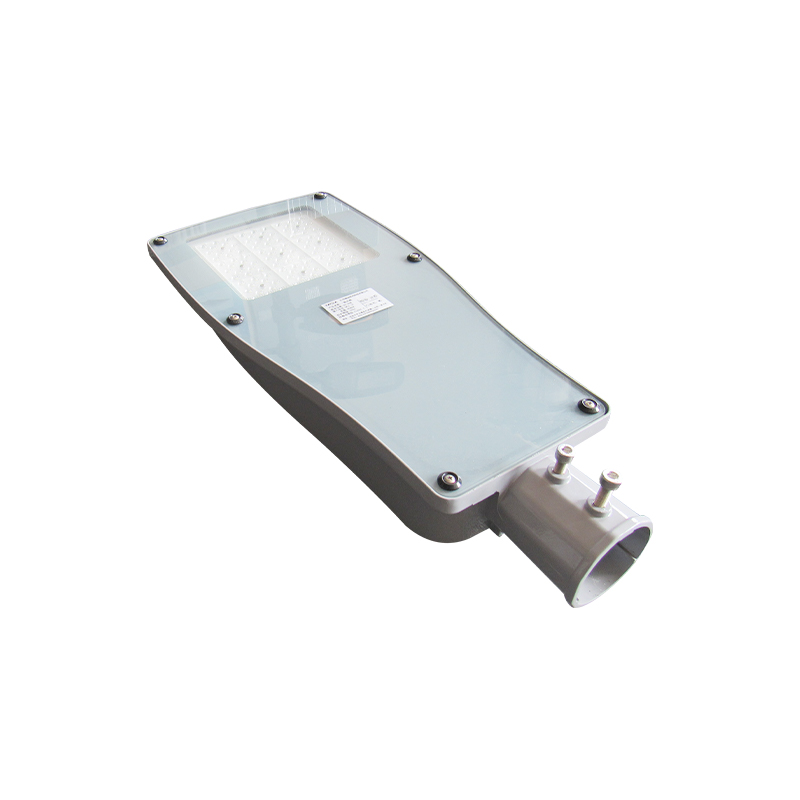

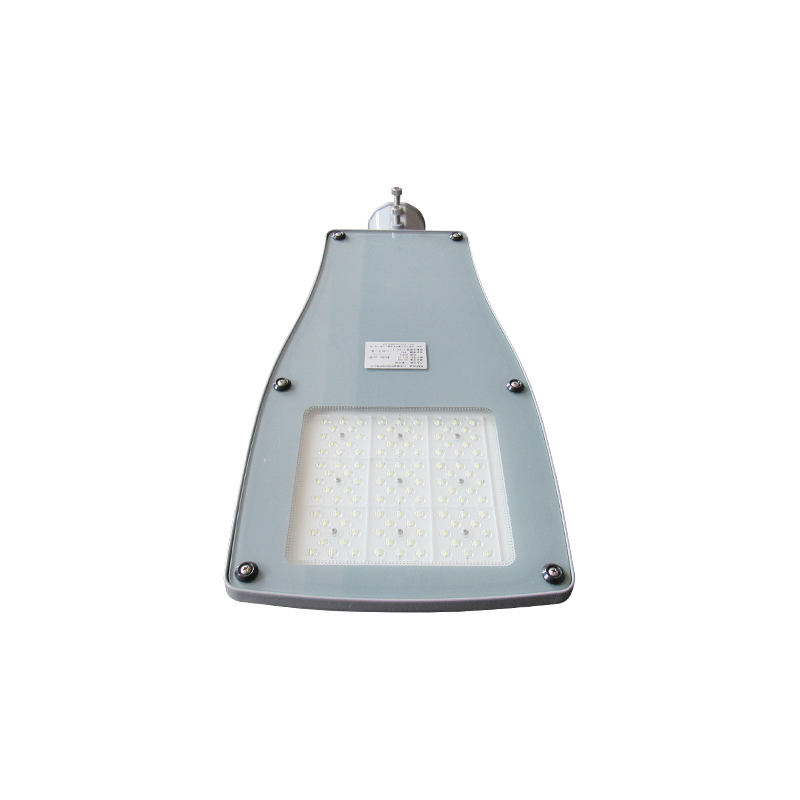

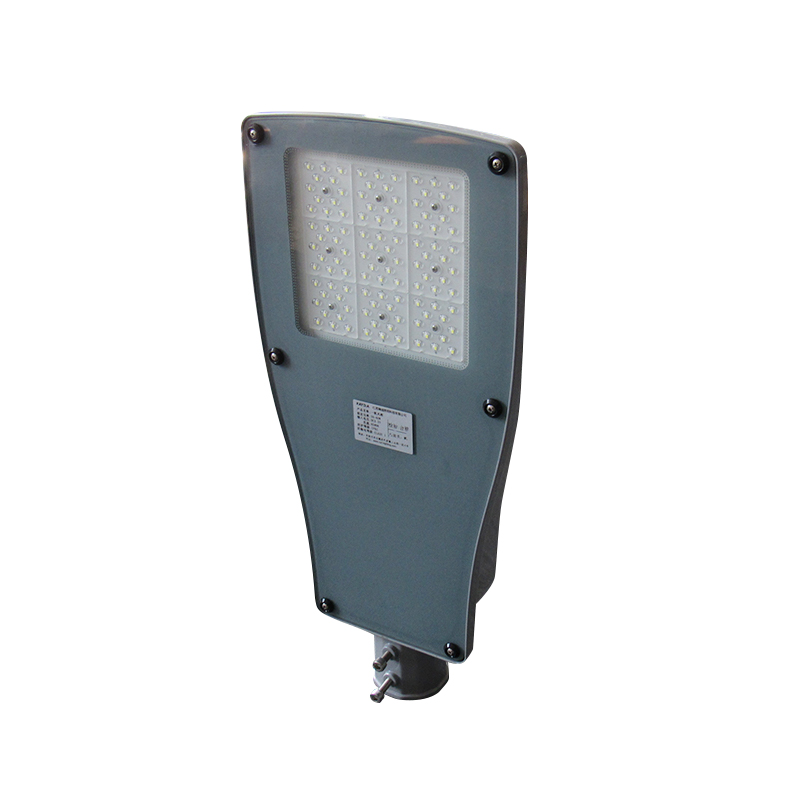

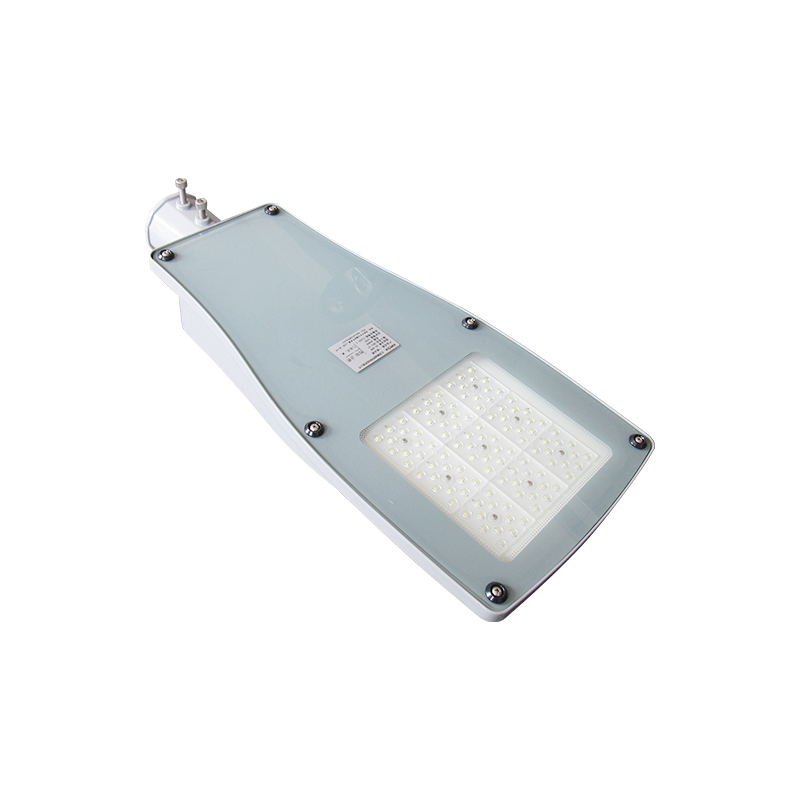

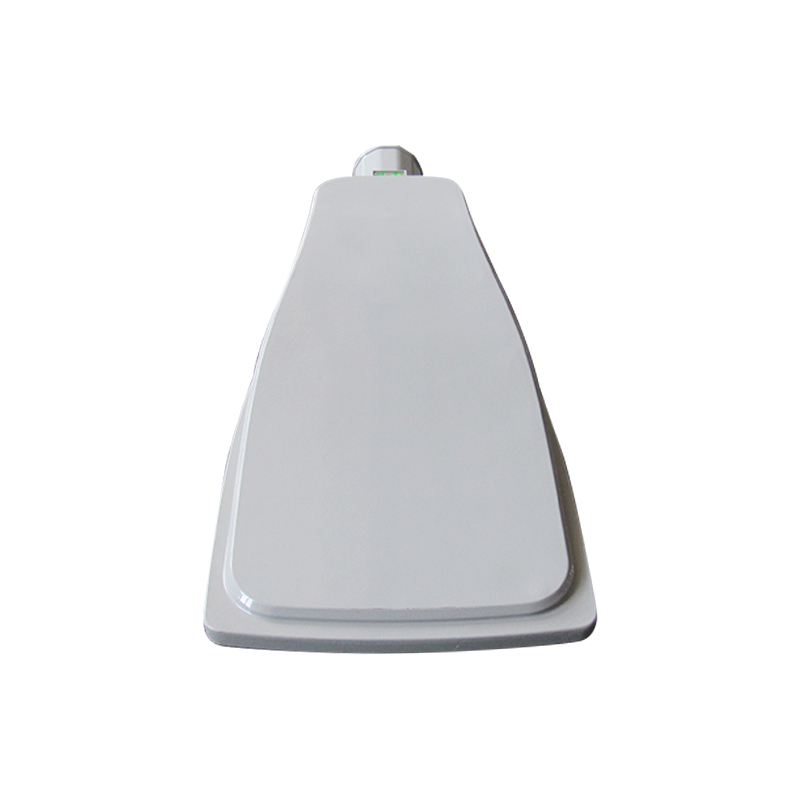

DDK-ASIA STAR 60-200W Outdoor LED Lamps Street Lights

The DDK ASIA STAR street lights are available in four models: LED-1601D, LED-1601A, LED-1601B, and LED-1601C1/C2, with power ranges from 200w-250w, 120w-200w, 60w-120w, and 20w-60w, respectively. All models feature an average lumen of around 120 LM/W and use chip brands such as PHILIPS, CREE, or Bridgelux. The driver brands include MW, PHILIPS, and Inventronics, among others, with a power factor greater than 0.95 and a voltage range of 90V-305V.

The lights offer surge protection of 10KV/20KV, have an insulation class of Class I, and can produce color temperatures ranging from 3000-6500K with a CRI of over 70. They operate within a temperature range of -35°C to 50°C and have an IP class of IP66 and an IK class of IK08, indicating a high level of dust and water protection and impact resistance.

The expected lifetime of these street lights is over 50,000 hours, and they are made of die-casting aluminum. All models come with photocell sensors and have various packing sizes and installation spigot options depending on the model. The drivers are available in dimmable (-0V or DAL) or non-dimmable versions.

REQUEST QUOTE

PREV: DDK-LD121 40-200W LED Street Light High Efficiency Outdoor Lamps NEXT: No next article

Parameters

Model	LED-1601D	LED-1601A	LED-1601B	LED-1601C1/C2
Wattage	200W-250W	120W-200W	60W-120W	20W-60W
Average Lumen	around 120 LM/W	around 120 LM/W	around 120 LM/W	around 120 LM/W
Chip Brand	PHILIPS/CREE/Bridgelux	PHILIPS/CREE/Bridgelux	PHILIPS/CREE/Bridgelux	PHILIPS/CREE/Bridgelux
Driver Brand	MW/PHILIPS/Inventronics	MW/PHILIPS//nventronics	MW/PHILIPS//nventronics	MW/PHILIPS/Inventronics
Power Factor	>0.95	>0.95	>0.95	>0.95
Voltage Range	90V-305V	90V-305V	90V-305V	90V-305V
Surge Protection(SPD)	10KV/20KV	10KV/20KV	10KV/20KV	10KV/20KV
Insulation Class	Class I/II	Class I/Il	Class I/Il	Class I/II
CCT.	3000-6500K	3000-6500K	3000-6500K	3000-6500K
CR/.	>70	>70	>70	>70
Working Temperature	(-35℃ to 50℃)	(-35℃ to 50℃)	(-35℃ to 50℃)	(-35℃ to 50℃)
IP Class	IP66	IP66	IP66	IP66
IK Class	≥IK08	≥IK08	≥IK08	≥/K08
Lifetime (Hours)	>50000 hours	>50000 hours	>50000 hours	>50000 hours
Material	Diecasting aluminium	Diecasting aluminium	Diecasting aluminium	Diecasting aluminium
Photocell base	With	With	With	With
Packing Size	855×355×130mm	755×320x125mm	630x255×115mm	570×255×115mm
Installation Spigot	60mm	76/60/50mm	76/60/50mm	60/50mm
